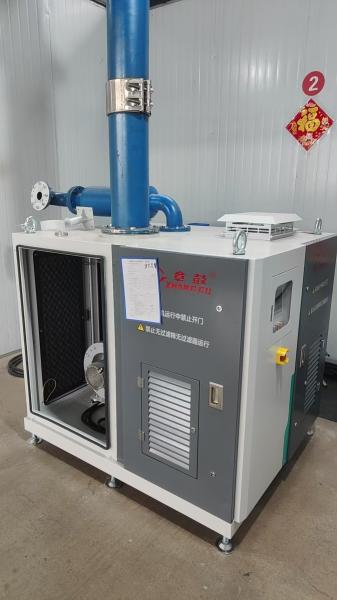

Industrial Grade Magnetic Levitation Blower with Magnetic Levitation Technology

Brand Name : Aipu

Place of Origin : China

Certification : CE,CCC,SABS,TUV,RoHS

Price : Negotiable

Packaging Details : Standard Export Package

Delivery Time : 6-8 workdays

Model Number : GF125

Voltage : 380V

Timer Function : Yes

Bear : Autonomous Domestic Magnetic Bearings

Size : 1850x1700x1780mm

Frequency : 50Hz/60Hz

Typology : Centrifugal Separator

Flow Range : 20-400m³/min

Contact Now

Product Description:

Magnetic Suspension Centrifugal Blower is a product of high efficiency,energy saving and environment-friendly that is directly mounted by high-speed PMSM and ternary flow centrifugal impeller. The shaft vibration is timely supervised by build-in displacement sensor. The collected data will be input to the Magnetic Suspension Bearing Controller for computa- tion to generate the control current. This current will be input to the windings of Magnetic Suspension Bearing to generate the magnetic force for suspension.
PMSM generates frequency controllable current via inverter,this current will be input to the motor stator to generate rotaion magnetic field to drive the shaft rotating at high speed.
The impeller driven by high-speed rotating shaft will take the air from volute casing inlet,and will be forced by impeller and volute casing guidance to generate flow velocity and pressure.Then will be discharged from volute casing outlet to complete the blowing process.

Features:

  • Energy saving and efficient

Ternary flow impeller is directly coupled with high-speed PMSM;
Save more than 30% energy than Roots Blower; Save more than 20% energy than Multi-stage Centrifugal Blower;
Save more than 10% energy than Single Stage High Speed Centrifugal Blower.

  • Low Noise

With the self-balancing technology, the vibration level of Magnetic bearing is lower than traditional bearings,and there is no friction, Adopting the active vibration damping design,the blower can operate smoothly of less vibration, and the noise of the blower is around 80dB(A).

  • Maintenance Free

Integrated design,skid mounted structure,convenient installa- tion,one key to start and stop the blower.No need for mechanical maintenance during daily operation,only to replace the filter.

  • Intelligent Control

With PLC+GPRS/3G/4G, we can real time monitor the operation status of the Blower and control flow,air pressure and speed by intelligently or manually mode.In case of failure, it can also be repaired and debugged remotely.

Technical Parameters:

ProductSeries GF 50 GF 75 GF100 GF125 GF150 GF175 GF200 GF250 GF300 GF350 GF400
Motorpower(KW) 50 75 100 125 150 175 200 250 300 350 400
Boost (kPa) Inlet flow rate (m³/min) 1atm 20°C
40 55 86 110 156 168 208 219 270 323 425 443
50 50 74 100 132 149 185 198 247 297 375 396
60 43 64 85 113 127 158 169 210 253 320 356
70 37 55 74 99 111 140 148 184 222 280 312
80 33 49 65 86 97 120 129 160 193 240 271
90 28 44 57 75 84 105 112 139 167 210 235
100 40 52 68 77 96 102 127 153 190 215
110 71 88 95 118 142 175 199
120 66 82 88 110 132 165 185
130 124 152 165
150 148
sizes(mm) 1700×1500×1480 1850×1700×1780 2150×1750×1700 2370×2260×2080
Weight (kg) 800 1000 1200 1350 1500 1800 2000 2500 2800 3200 3500

When the use conditions of the blower and the above table does not match, the need for performance conversion, our company can be non-standard design according to user requirements to meet the specific needs of users of various working conditions.

Applications:

Suitable for sewage treatment industry, leather manufacturing industry, petrochemical ind puand paper industry, thermoelectric industry, metallurgical industry, pharmaceutical industry, coal chemical industry, textile industry, printing and dyeing industry, food industry, cement building materials industry, etc.

Industrial Grade Magnetic Levitation Blower with Magnetic Levitation Technology

Customization:

Support and Services:

The Magnetic Levitation Blower product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction.

Our experienced technical support team is available to answer any questions or concerns regarding installation, operation, maintenance, and troubleshooting of the product. We offer remote support through phone and email, as well as on-site support for more complex issues.

In addition, we provide various services to enhance and customize the product to meet specific customer requirements. These services include but are not limited to:

  • Customized design and engineering
  • Product testing and validation
  • Integration with other systems
  • Training and education
  • Warranty and repair services

Our commitment to quality and customer satisfaction is reflected in our continuous improvement efforts and adherence to industry standards and regulations.

Packing and Shipping:

Product Packaging for Magnetic Levitation Blower:

  • 1 Magnetic Levitation Blower
  • 1 Power Adapter
  • 1 User Manual

Shipping Information:

  • Ships within 35 business days
  • International shipping available for an additional fee
  • Tracking number provided

FAQ:

Q1: What is the brand name of this Magnetic Levitation Blower?

A1: The brand name of this product is Aipu.

Q2: Where does this Magnetic Levitation Blower originate from?

A2: This product originates from China.

Q3: What certifications does this Magnetic Levitation Blower have?

A3: This product has CE, CCC, SABS, TUV, and RoHS certifications.

Q4: What is the price of this Magnetic Levitation Blower?

A4: The price of this product is negotiable.

Q5: What are the packaging details and delivery time of this Magnetic Levitation Blower?

A5: The packaging details of this product are standard export package and the delivery time is 6-8 workdays.
